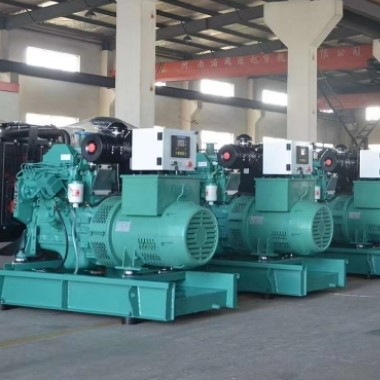

Cummins engine serial - open frame

Cummins is one of world top famous engines and widely acceptable all over the world.  Cummins Inc., a global power leader, is a corporation of complementary business units that design, manufacture, distribute and service engines and related technologies, including fuel systems, controls, air handling, filtration, emission solutions and electrical power generating systems. Headquartered in Columbus, Indiana, (USA) Cummins serves customers in approximately 190 countries and territories through a network of more than 600 company-owned and independent distributor locations and approximately 5,200 dealer locations. Cummins reported a net income of $1.04 billion in 2010(click cummins.com to read more). And please click http://en.wikipedia.org/wiki/Cummins to read more information about cummins history and cummins engines production plants all over the world.



Contact Us Brochure download
  • Specifications
  • Inquiry



Model Power output(kw) Current(A) Engine Model No.of Cylinders Bore*Stroke（mm） Displacement（L） Fuel Consumption(g/kw.h Open frame Diamension (mm )(L*W*H) Weight(KG)
KW KVA
Cummins engine from Dongfeng factory
CPC-15GF 15 18.75 27 4B3.9-G2 4 102*120 3.9 208 1650*720*1200 700
CPC-20GF 20 25 36 4B3.9-G2 4 102*120 3.9 208 1650*720*1200 700
CPC-24GF 24 30 43.2 4BT3.9-G2 4 102*120 3.9 208 1700*720*1200 710
CPC-30GF 30 37.5 54 4BT3.9-G2 4 102*120 3.9 208 1700*720*1200 800
CPC-40GF 40 50 72 4BTA3.9-G2 4 102*120 3.9 210 1800*750*1200 920
CPC-50GF 50 62.5 90 4BTA3.9-G2 4 102*120 3.9 210 1800*750*1200 950
CPC-64GF 64 80 115.2 4BTA3.9-G11 4 102*120 3.9 210 1850*800*1300 1000
CPC-80GF 80 100 144 6BT5.9-G2 6 102*120 5.9 210 2250*800*1300 1250
CPC-100GF 100 125 180 6BTA5.9-G2 6 102*120 5.9 207 2300*800*1300 1300
CPC-120GF 120 150 216 6BTAA5.9-G2 6 102*120 5.9 207 2300*830*1300 1350
CPC-150GF 150 187.5 270 6CTA8.3-G2 6 114*135 8.3 207 2400*970*1500 1600
CPC-180GF 180 225 324 6CTAA8.3-G2 6 114*135 8.3 207 2400*970*1500 1700
CPC-200GF 200 250 360 6LTAA8.9-G2 6 114*145 8.9 207 2600*970*1500 2000
CPC-220GF 220 275 396 6LTAA8.9-G3 6 114*145 8.9 203 2600*970*1500 2000
CPC-320GF 320 400 576 6ZTAA13-G3 6 114*145 13 202 2900*1200*1750 3000
CPC-400GF 400 500 720 6ZTAA13-G4 6 114*145 13 202 2900*1200*1750 3000
CPC-400GF 400 500 720 QSZ13-G2 6 130*163 13 201 3100*1250*1800 3100
CPC-450GF 450 562.5 810 QSZ13-G3 6 130*163 13 201 3100*1250*1800 3100
Cummins engine from Chongqing factory
CPC-200GF 200 250 360 NT855-GA 6 140*152 14 206 3000*1050*1750 2600
CPC-200GF 200 250 360 MTA11-G2 6 140*152 14 206 3000*1050*1750 2700
CPC-250GF 250 312.5 450 NTA855-G1A 6 140*152 14 207 3100*1050*1750 2900
CPC-280GF 280 350 504 MTAA11-G3 6 125*147 11 210 3100*1050*1750 2900
CPC-280GF 280 350 504 NTA855-G1B 6 140*152 14 206 3100*1050*1750 2950
CPC-300GF 300 375 540 NTA855-G2A 6 140*152 14 206 3200*1050*1750 3000
CPC-350GF 350 437.5 630 NTAA855-G7A 6 140*152 14 205 3300*1250*1850 3200
CPC-400GF 400 500 720 KTA19-G3A 6 159*159 19 206 3300*1400*1970 3700
CPC-450GF 450 562.5 810 KTA19-G4 6 159*159 19 206 3300*1400*1970 3900
CPC-500GF 500 625 900 KTA19-G8 6 159*159 19 206 3500*1500*2000 4200
CPC-550GF 550 687.5 990 KTAA19-G6A 6 159*159 19 206 3600*1500*2000 4800
CPC-600GF 600 750 1080 KT38-GA 12 159*159 38 206 4300*1700*2350 7000
CPC-650GF 650 812.5 1170 KTA38-G2 12 159*159 38 206 4300*1700*2350 7500
CPC-700GF 700 875 1260 KTA38-G2B 12 159*159 38 206 4400*1750*2350 8000
CPC-800GF 800 1000 1440 KTA38-G2A 12 159*159 38 206 4500*1750*2350 8200
CPC-900GF 900 1125 1620 KTA38-G5 12 159*159 38 208 4500*1800*2350 8800
CPC-1000GF 1000 1250 1800 KTA38-G9 12 159*159 38 208 4500*1800*2350 9200
CPC-1100GF 1100 1375 1980 KTA50-G3 16 159*159 50 205 5300*2080*2500 10000
CPC-1200GF 1200 1500 2160 KTA50-G8 16 159*159 50 205 5700*2280*2500 10500
CPC-1440GF 1440 1800 2592 QSK50G7 16 159*190 60 205 5700*2280*2500 12500
CPC-1680GF 1680 2100 3024 QSK60G3 16 159*190 60 205 5700*2280*2500 13000
CPC-1760GF 1760 2200 3168 QSK60G4 16 159*190 60 205 5800*2300*2600 13500
CPC-1840GF 1840 2300 3312 QSK60G13 16 159*190 60 205 5800*2300*2600 13500
